What is all about?

Ready for use right away: the Wall Reader of Smart Access Solutions. With relays already installed, you can directly control all types of electromechanical locks, conveniently manage them with our Secure Cloud Core environment and easily control them with our okey smartphone app using Bluetooth.

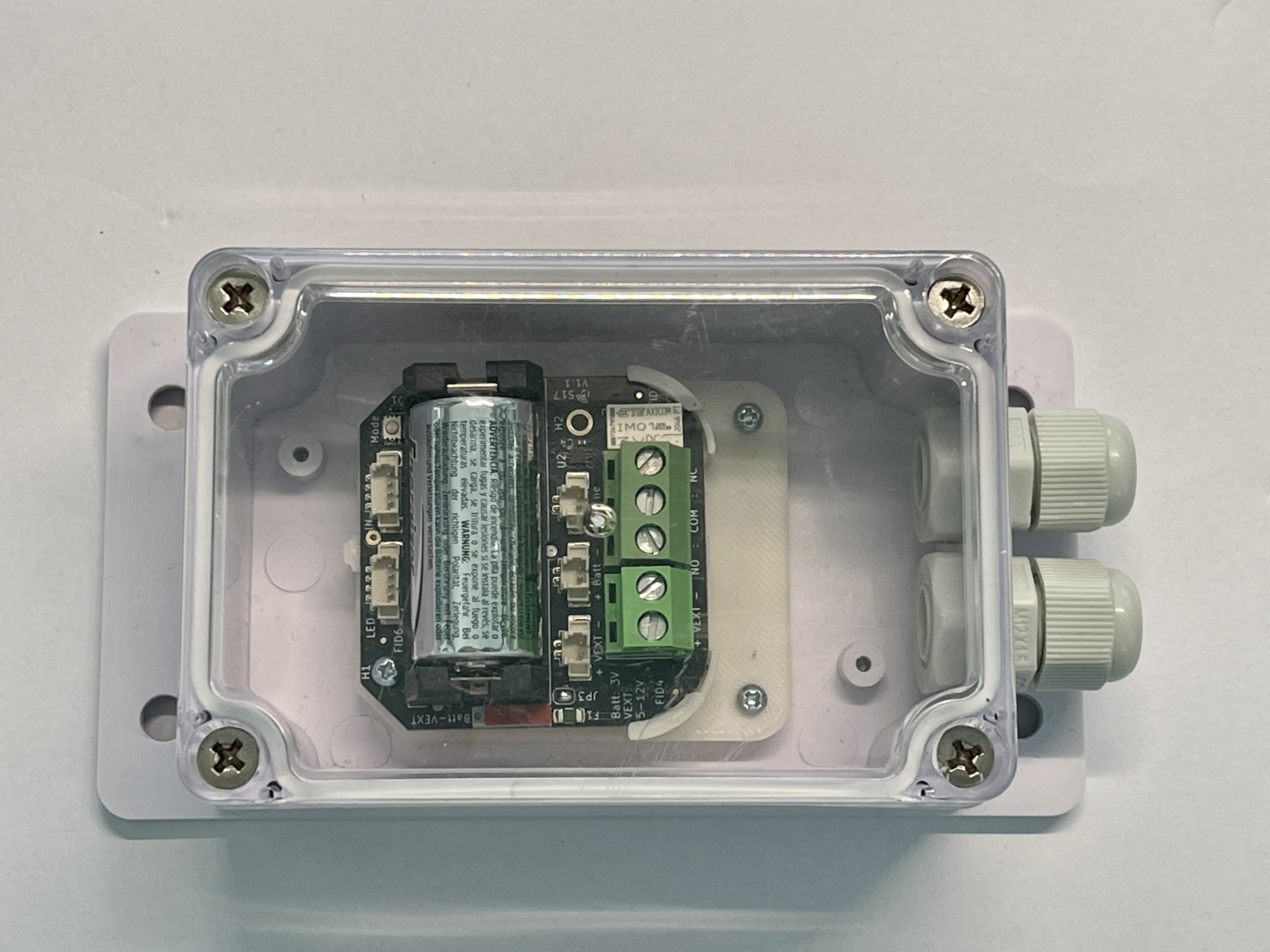

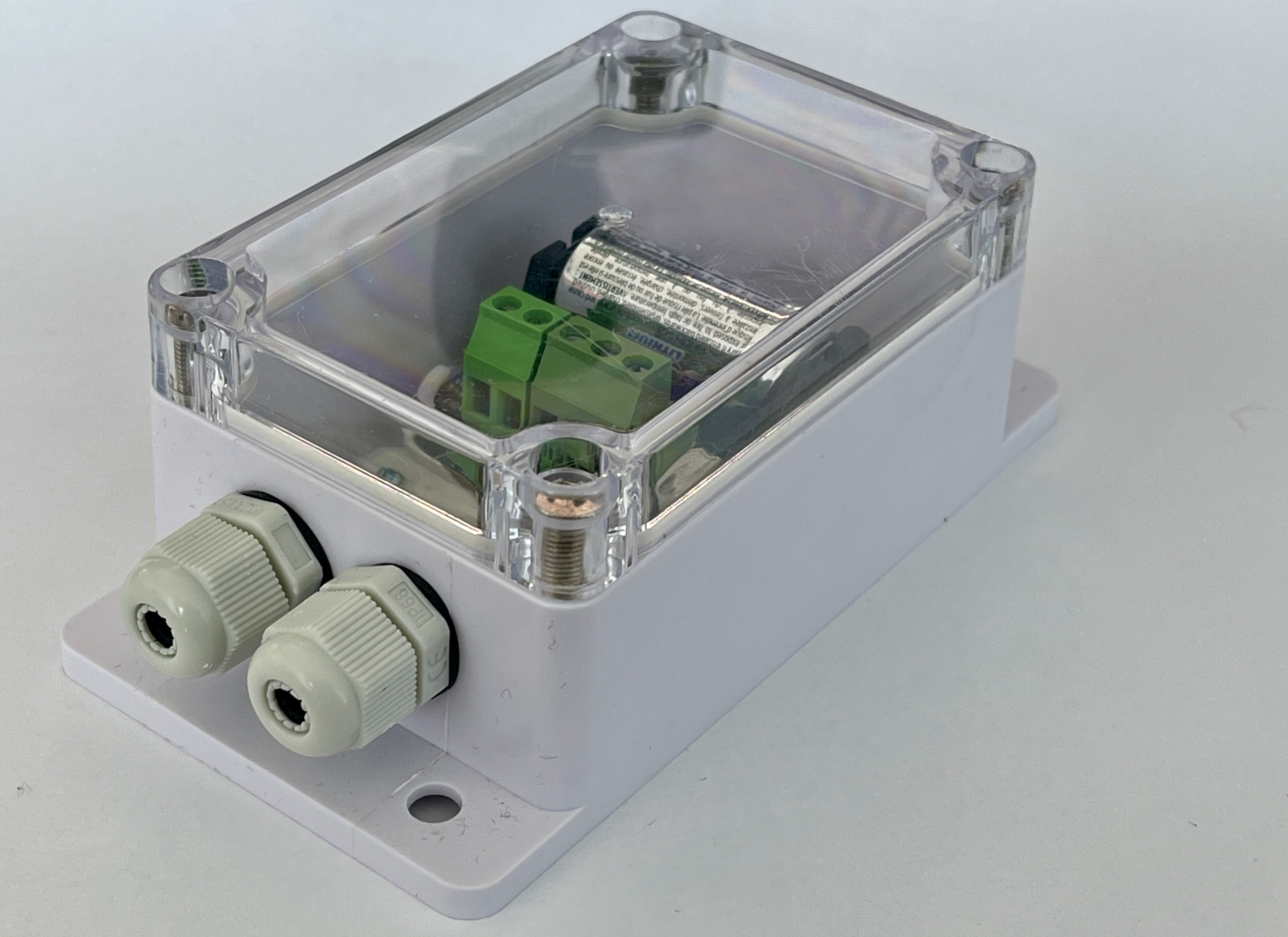

In its weatherproof housing (IP66), the Wall Reader is installed and connected to an electronic lock in just a few moments.

The Wall Reader is just as versatile as all the other lock electronics of Smart Access Solutions but expands them with a relay connection.

On request, we can also supply the units with ready-made cable sets for connecting the external locks.

We will be happy to advise you on the selection of suitable locks or offer the locks as a complete package.

Technical Data: SAS-WR01
Weight without Battery: 137.0 gr.
Weight (incl. Battery): 153.6 gr.
Dimensions (L, W, H) 132 mm, 69 mm, 48 mm
Operating temperature: -20 °C to +60 °C at maximum 95 % humidity
Operating voltage: 3 Volt with internal Battery
5 – 12 Volt DC with external power supply
Internal Battery: CR123A (only necessary if battery powered)
Housing: IP66 water resistant
Load Voltage of Relay: 220VDC/250VAC /2/5A
Hardware Typ: System on a Chip
Processor: Nordic nRF52832 system
Memory: 512 K Flash / 64 K Ram
Core: 32-bitARM Cortex M4F
Interfaces: Bluetooth mit 5.0 BLE Frequenz 2,44 GHz
Software: SAS Secure OS basierend auf Free RTOS (Real Time OS)

Product Data Sheet
